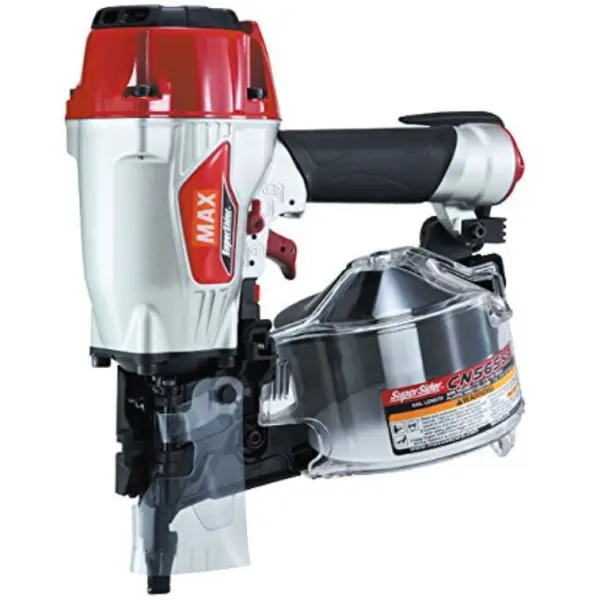

MAX SuperSider CN565S3

Part Number: MAXCN565S3
Click image to enlarge

MAX SuperSider CN565S3

399
$399.00
Quantity:

Product Details

Features

* A rafter hook is installed on the tool.
* Carrying case is included
* Upgraded contact nose that is removable and designed with a larger inside diameter to accommodate larger nail heads, for easy jam clearance and to prevent accidental detachment. * Slim guide contact arm doesn't highlight the driver mark
* Slim guide contact arm prevents from the wire scrap flying
* Easy-load magazine
* Anti-double fire mechanism (US Patent 5597106)
* Short height design only 11-7/8"
* Maintenance free end cap filter (US Patent 5637135)
* Easy twist adjustable exhaust deflector
* Dial adjustable depth control
* Clear magazine
it's easy to check the rest of nail.

Drives from 1-1/2"x.083"- 2-1/2"x.099" (38mm x 2.1mm - 65mm x 2.5mm) flat wire welded nails Drives from 1-1/4" x .083" - 2-1/2" x .099" (32mm x 2.1mm - 65mm x 2.5mm) flat plastic sheet collated nails

Applications

*Siding (Hardboard and cement)
*Sheathing
*Fencing
*Subfloors
*Roof decking
*Exterior deck
*Exterior trim
*Furring
*Strapping


Specifications

  • Nail size: 1-1/2-2-1/2"
  • Angle: 15
  • Gauge: .083-.099
MODEL
CN565S3
FIRING METHOD
Anti-double fire
WEIGHT
5.2lbs (2.4 kg)
DIMENSIONS
11-7/8"(H) x 5"(W) x 10-7/8"(L)
(302 x 127 x 275mm)
LOAD CAPACITY
400 nails
OPERATING PRESSURE
70-100 psi (5 to 7 bar)
AIR CONSUMPTION
0.05ft3 at 100p.s.i. (1.55lit at 7 bar)
operating pressure
