STI EZ Path 44+ Fire Rated Pathway

Part Number: STIEZD44S2
Click image to enlarge

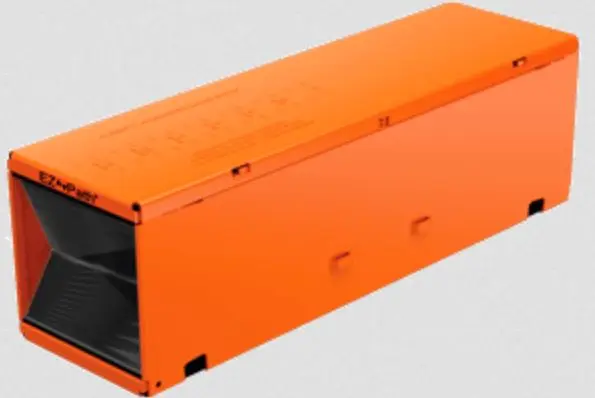

STI EZ Path 44+ Fire Rated Pathway

430.0688
$430.07
Quantity:

Product Details

The EZ-Path® Series 44+ Fire-Rated Pathway is designed for high cable volume conditions through fire-rated walls and floors while eliminating the burden of ongoing maintenance. The Series 44+ incorporates self-sealing intumescent pads that automatically adjust to the installed cable fill without the need for user manipulation. Under fire exposure, the intumescent pads expand and swell resisting the passage of smoke and flame.

  • Self Sealing design provides exceptional fire and smoke leakage ratings
  • Allows for easy Moves, Adds, and Changes
  • Designed for New and Existing conditions
  • Variety of accessories available for any field condition
  • Modular grid system for riser applications
  • Greatest achievable cable density of any solution on the market
Dimensions: 4” w x 4 5/8”H x 14” L (102 x 118 x 356 mm)
Shell Composition: 0.059” (1.5 mm) thick galv. steel
Cable Loading Area: 3 3/8” x 3 3/4” (86 x 95 mm)
Allowable Cable Fill: 0 to 100% visual fill
Fire Ratings: 1, 2, 3 or 4 hours
Expansion Begins: 350ºF (177ºC)
Volume Expansion: 15X
Sample Cable Volume: 210 (Cat6 0.236" OD)
In-Service Temperature: Not to exceed 120ºF (49ºC)
Shelf Life: No Limit
